Eocene Epoch — Pacific Northwest Formation
62 MILLION
YEARS OF
FILTRATION,
extracted daily.
February 2026 production output
0dry metric tons
Scroll through strata
Diatomaceous Earth·SiO₂ ≥ 85%·Filtration Grade·Food-Grade Certified·62 Million Years·ISO 13320 Tested·Calcined & Natural Grades·48.7M Ton Reserve·Diatomaceous Earth·SiO₂ ≥ 85%·Filtration Grade·Food-Grade Certified·62 Million Years·ISO 13320 Tested·Calcined & Natural Grades·48.7M Ton Reserve·
Stratum 01 — Present Day
Today's Output
Last updated: 11:15 AM PST
DE-F10Beer / Wine Filtration
AvailableSiO₂91.2%
Moisture0.4%
Volume (t)212
DE-M25Municipal Water Treatment
AvailableSiO₂88.7%
Moisture0.6%
Volume (t)178
DE-C40Calcined Ceramic Filler
Low StockSiO₂94.1%
Moisture0.2%
Volume (t)134
DE-AGFood-Grade Agricultural
AvailableSiO₂85.3%
Moisture0.8%
Volume (t)203
DE-P08Semiconductor Polish
ReservedSiO₂95.8%
Moisture0.1%
Volume (t)88
DE-I15Kiln Insulation
Low StockSiO₂87.4%
Moisture0.5%
Volume (t)32
Particle Size DistributionComposite — all grades — May 2026
8%
22%
38%
24%
8%
<5μm
5–15μm
15–30μm
30–60μm
>60μm
Oxide CompositionXRF Analysis — Batch #FEB-2026-114
SiO₂ Purity
Spec: ≥88%91.2%
Fe₂O₃
Spec: ≤1.5%0.8%
Al₂O₃
Spec: ≤6%4.1%
CaO
Spec: ≤0.5%0.3%
✓ All parameters within specification
Stratum 02 — Extraction
Deposit Cross-Section
Borehole BH-44 — Cross SectionScale 1:200
0m
4m
11m
19m
28m
31m
Topsoil & Overburden
Transitional Clay
DE Horizon A — PrimaryDE Zone
DE Horizon B — SecondaryDE Zone
Volcanic Ash Interlayer
Basal DE Horizon C
Deposit Area
2,340hectares
Proven Reserve
48.7million tons
Overburden Ratio
0.8to 1
Avg. Seam Depth
14.2meters
Active Drill Sites
7cores active
Reserve Life
57+years
Core Box 44-C through 44-FDE Horizon A — 11.4m to 19.2m depth
11m
13m
15m
17m
19m
DE Horizon A (11 – 19m)
DE Horizon B (19 – 28m)
Basal DE Horizon C (31 – 38m)
Stratum 03 — Formation
62 Million Years,
layer by layer.
Stratigraphic Column — Paleolake Seam
0
5
12
34
56
62+ Mya
Modern OverburdenNon-DE
Late Miocene ClayClay
Miocene DE AccumulationDE Grade B
Eocene–Oligocene PeakDE Grade A ★
Early Eocene Lake FormationDE Grade C
Basement BasaltBedrock

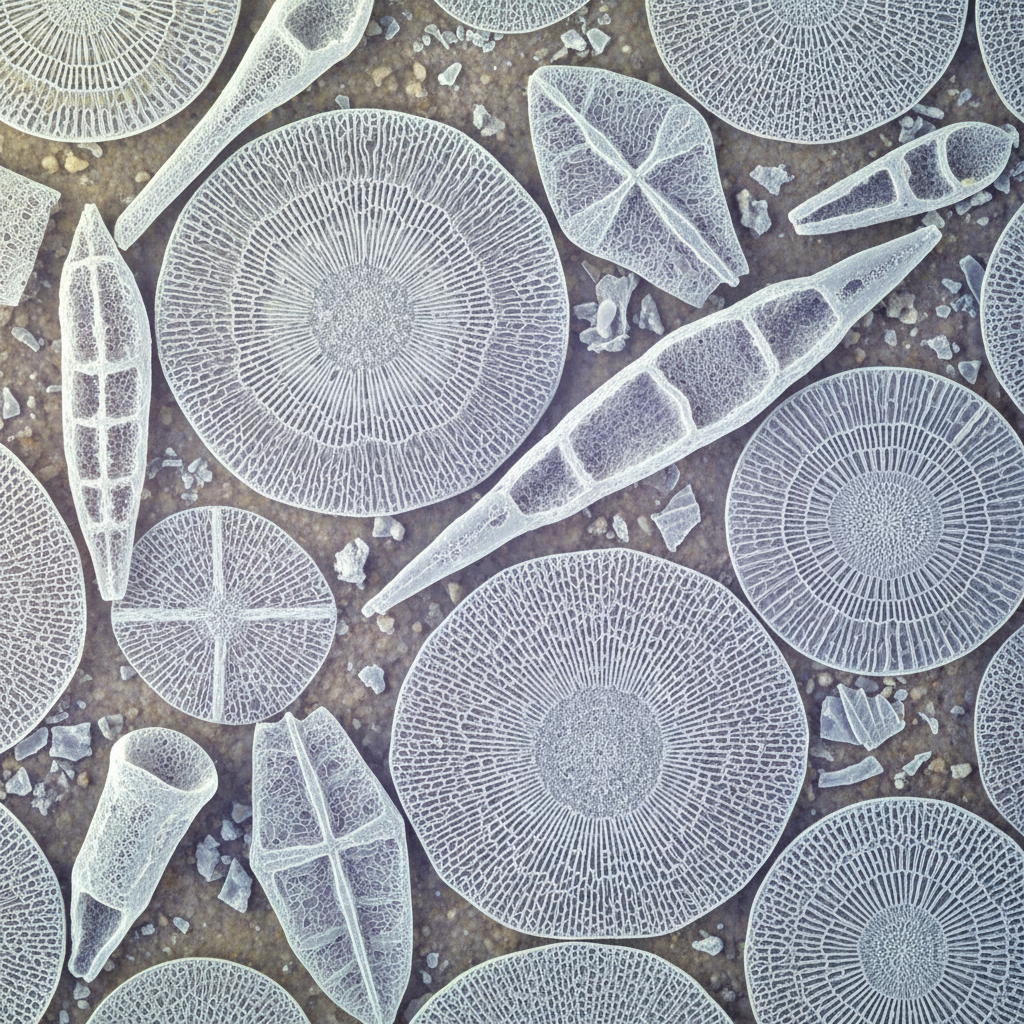

SEM Imagery — 2,000× MagnificationCyclotella meneghiniana — dominant species, Grade A horizon
10μm
62MYears of depositionEocene to present
10–80μmDiatom frustule diameterSpecies Cyclotella & Melosira
~90%Silica by dry weightAmorphous SiO₂
1M+Frustules per gramGrade A horizon
Approximate — 56 Mya reconstruction
Particle Distribution Curves — All Grades
Full d10/d50/d90 particle size data for DE-F10, DE-M25, DE-C40, DE-AG, DE-P08, and DE-I15 grades. ISO 13320 laser diffraction method.
Stratum 04 — Full Analysis
The Complete Deposit Analysis.
78 pages. Six grades. One lakebed. Everything a procurement engineer needs to justify a supplier switch — grade consistency data, reserve life, processing methodology, and certification documentation.
Contents — 78 Pages
PDF
Full XRF Oxide Analysis
8 pp.Particle Size Distribution — All Grades
12 pp.Stratigraphic Core Log BH-44
24 pp.Reserve Estimation Report
18 pp.Food-Grade & SDS Certificates
6 pp.Processing & Calcination Data
10 pp.Updated February 2026. Includes XRF batch data from Q4 2025 and Q1 2026 production runs. Suitable for vendor qualification documentation.
Download Full Deposit Analysis
Work email and application type only. No sales calls unless you request one.
NSF/ANSI 60Drinking Water
FDA 21 CFRFood Contact
ISO 13320Particle Analysis
